14-0001-30
EAN: 5904405931738

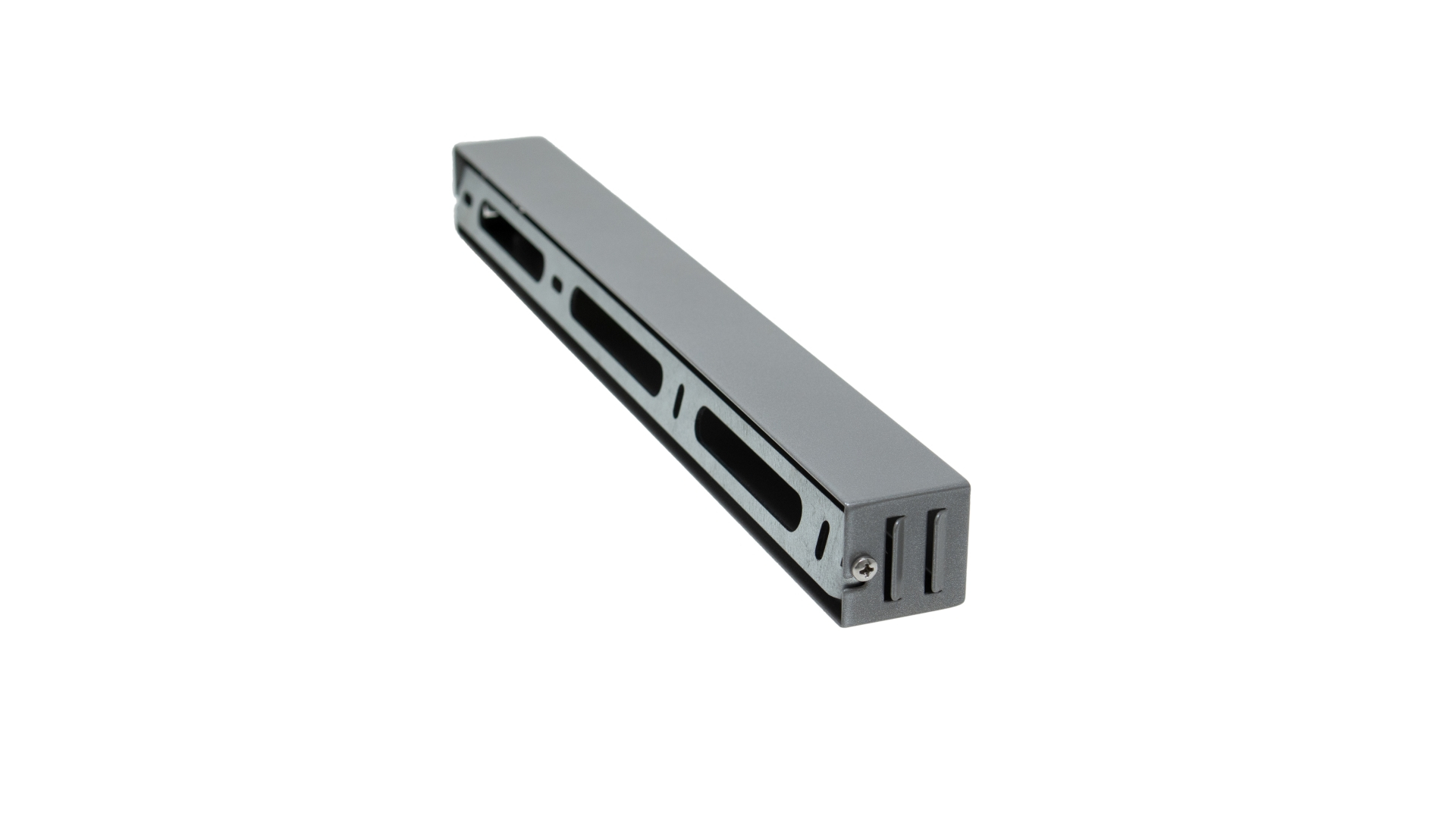

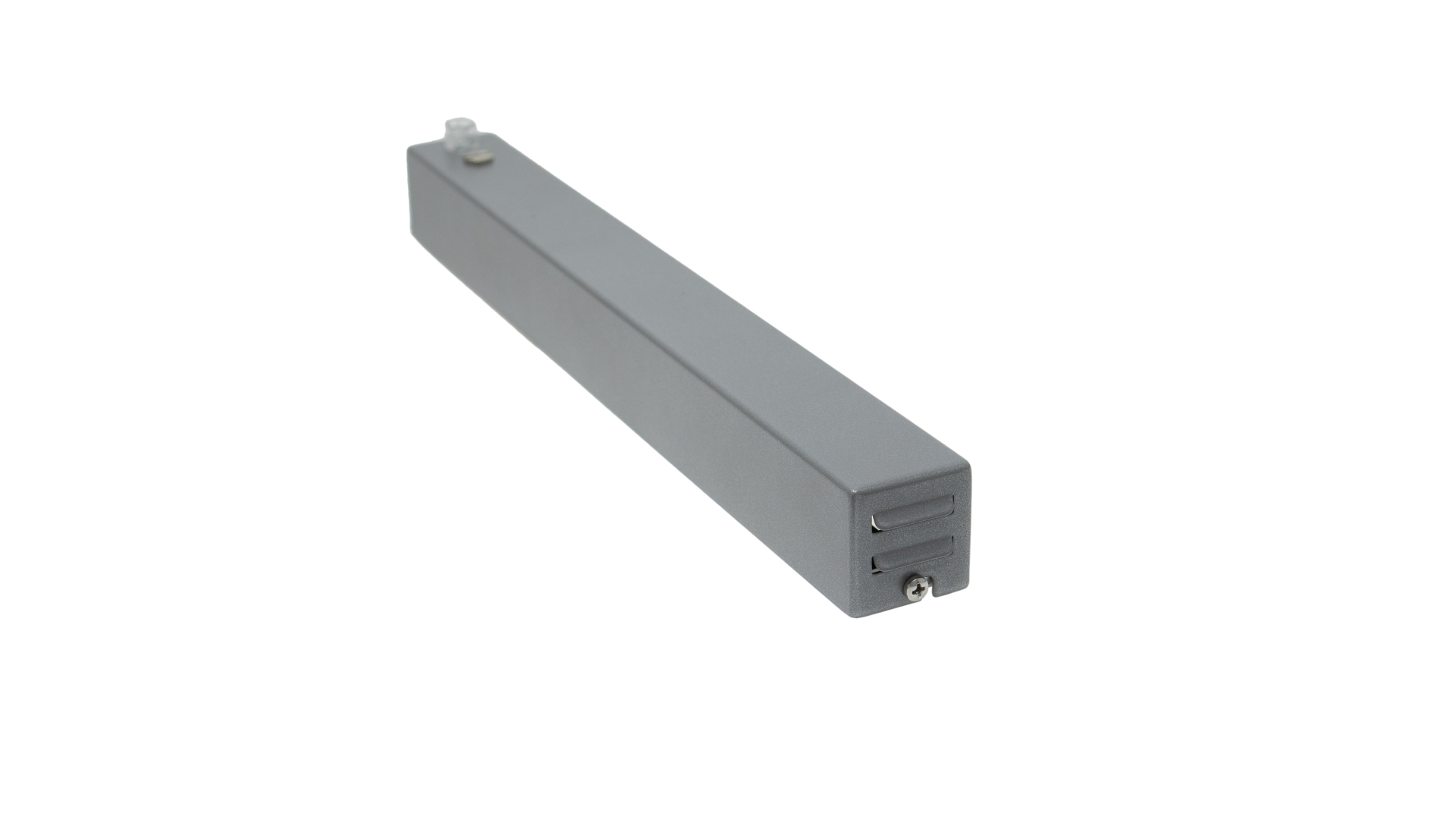

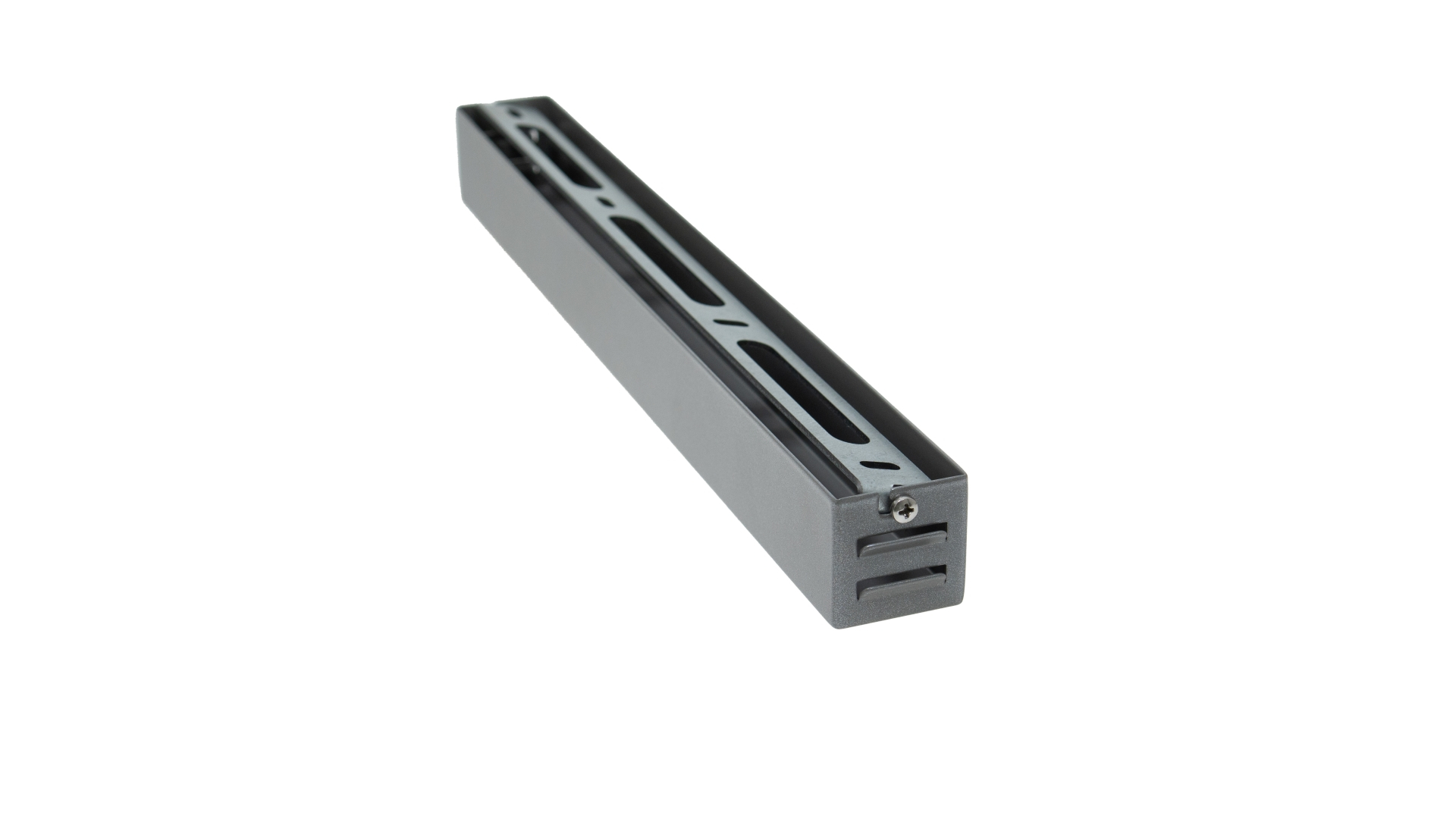

CEILING CANOPY 380x40x40mm, silver - SET
| Stock status: |
average
|
| Ceiling canopy shape | Rectangular 380 mm |
| The color of the canopy | Silver |
| Ceiling canopy length | 380mm |
| System | A, B, C, D, G, H, X, Y, Z, E, F, I6, I10, Q18, W, MICO, COSMO, RETO, TERRA, SCALA, SILEDA, inSILEDA, DILEDA, inDILEDA, UNICO, DOPIO, SOLIS, ILEDO, INSO, CLARO, DULIO, TALIA, inTALIA, LARGO, inLARGO, MONO, ZATI, SUBLI, SORGA, TIANO, FLARO, APA12, APA16, IPA12, IPA16, LOGI, CONVA, TOPO, PERO, VEDA |
Available variants:
System
Incorrect number of products in the package
Product sold only as a complete set
Unfortunately, the following products are missing: products
Similar products in Special offer
Product description
The headliner is an auxiliary element for creating a hanging lamp made of aluminum profiles for LED LUMINES.
The maximum diameter of the cable in the cable gland is 6.5 mm. The set includes assembled elements: Canopy cover, mounting bracket (no mounting pins included), cable clamp (strain relief with screw), hex nut, ground wire, toothed washer, Nipple M10x1.
Installation:
Place the headliner on the mounting bracket so that the screw heads stick out, gently move it to the edge and then tighten the screws.
